Adjustable spot size (2–10 mm)

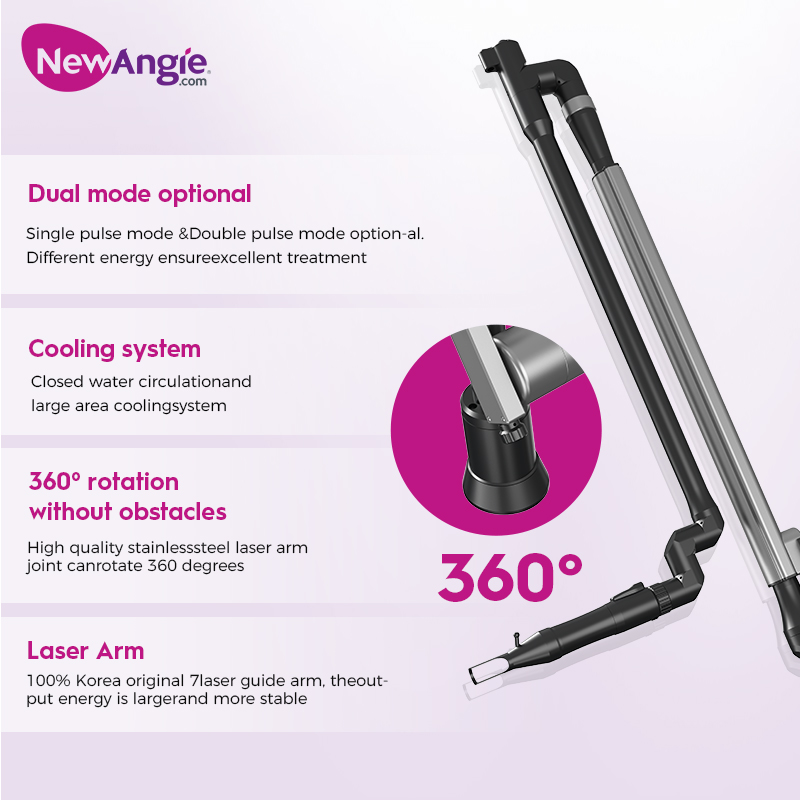

Imported articulated arm (South Korea)
Multi-functional system

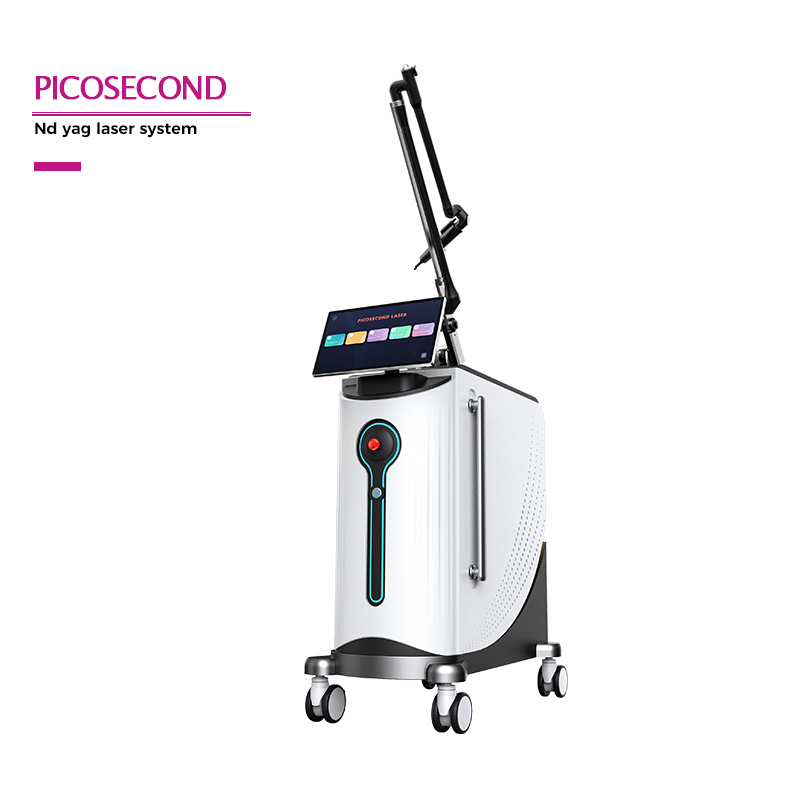

Compared to traditional laser systems, the Pico Pro offers higher peak power, greater treatment precision, and enhanced patient comfort, making it an ideal investment for medical aesthetic clinics, dermatology centers, and laser treatment facilities. Introducing advanced Q-switch technology not only provides customers with a completely new treatment experience and ideal results, but also gives you credibility and a good reputation in your target market, enabling you to become a leader in the medical aesthetics market and expand your business.
Q-switched Nd:YAG laser technology operates based on the principles of "selective photothermolysis" and the "photoacoustic effect."
The laser emits ultra-short pulses (measured in nanoseconds) that deliver high peak energy directly to the target pigment particles.
When tattoo ink or melanin deposits absorb the laser energy, the pigment rapidly expands and shatters into tiny fragments. These fragments are subsequently cleared away by the body's natural lymphatic system, causing the tattoo or pigmentation to gradually fade.
Unlike traditional lasers that rely on thermal effects, Q-switched laser technology minimizes heat diffusion to surrounding tissues, thereby reducing the risk of scarring and shortening the recovery period.
The 1064nm wavelength penetrates deep into the dermis, offering significant efficacy in treating black and blue tattoos, Nevus of Ota, dermal pigmentation, and skin rejuvenation.
The 532nm wavelength specifically targets superficial pigmentation and warm-toned tattoo inks (such as red, orange, and yellow pigments).
The 585nm dye laser handpiece is designed to enhance treatment results for blue and light-colored tattoo pigments, which are often difficult to remove effectively with conventional wavelengths.
The 650nm handpiece improves the removal of green tattoo pigments and expands treatment versatility.
Laser Type | Q-switch laser |
Wavelength | 532nm/1064nm |
Operation Interface | 15.6 screen |
Arm | lmported from Korea |
Spot size | 2-10mm |
Energy | 600mJ, 800mJ, 1200mJ@1064nm 300mJ, 400mJ, 600mJ@532nm |
Pulse duration | 5-6ns |
Frequency | 1-10Hz |
| Power Supply | AC 110-220V 50/60Hz |
| Packing Size | 110*71*145cm |
| Gross Weight | 168kg |
Our new Pico Pro Q-Switch laser tattoo removal device features three operating modes, allowing for precise treatment based on the patient's tattoo color and specific treatment needs.
Utilizes rapid, short pulses to break down tattoo ink into smaller particles, minimizing heat buildup for safer and faster treatment.
Multi-layer Tattoos
Stubborn or difficult-to-treat Ink Colors
Sensitive Skin Areas
By releasing multiple consecutive pulses, energy is accumulated, creating a stronger photoacoustic impact, ideal for removing large or colored tattoos and stubborn pigmentation.
Large Tattoos
Multi-color Tattoos
Stubborn Pigmentation
Releases continuous pulse energy for deeper penetration, ideal for treating coarse hair, darker skin tones, and deeper pigmentation.
Thick or Coarse Hair
Darker Skin Tone
Deep Pigmentation and Vascular Lesions
Note: Long pulse mode is configured for 1200mJ machines.
We are actively seeking distributors, wholesalers, and partners in the medical aesthetics equipment sector worldwide.
Through our OEM and ODM services, partners can develop their own branded laser equipment while leveraging our manufacturing expertise and technical support.
A Q-Switched Nd:YAG Laser is a medical aesthetic laser that emits high-energy nanosecond pulses for tattoo removal, pigmentation treatment and skin rejuvenation.
Yes. Q-Switched Nd:YAG laser technology is considered one of the most effective and widely used methods for professional tattoo removal.
Most tattoos require between 4 and 10 treatment sessions depending on ink depth, color and skin type.
Yes. The combination of 532nm, 1064nm, 585nm and 650nm wavelengths allows treatment of multiple tattoo colors.
Yes. The 1064nm wavelength is widely used in laser toning protocols for melasma and pigmentation management.
